Motionsic Check-Six Servo 280° rotation wide range

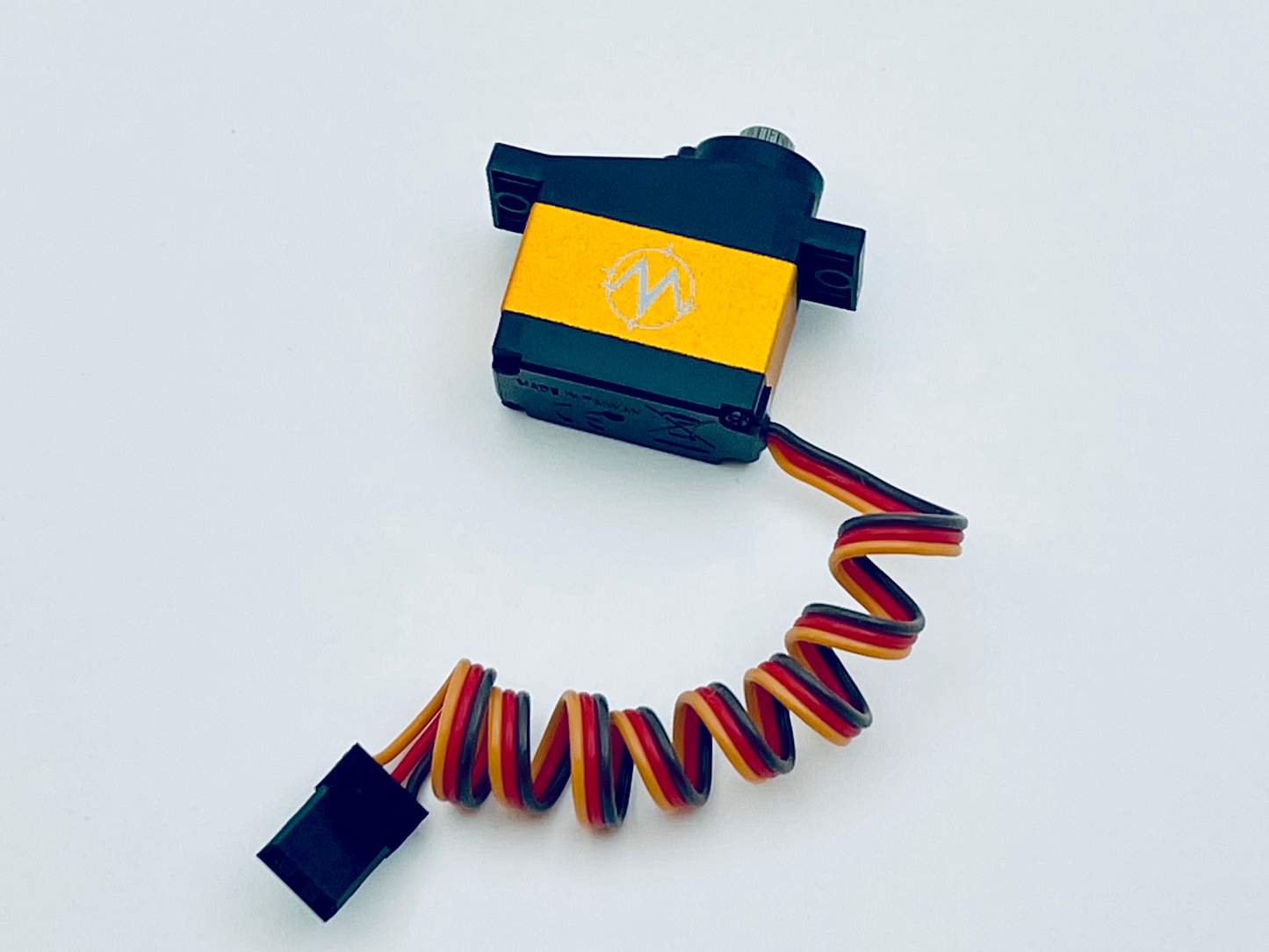

Motionsic "Check-six" Custom Servo

$39.99 now $34.99

Moving and Reorganizing. Shipping Suspended until  6/10/2024

Motionsic "Check-six" Custom Servos for use with the Motionsic BAG. Proudly designed in the USA and made in Taiwan by Savöx.

Attributes:

Wide range of motion - features impressive 270° range of motion, allowing camera to view 360°

Durable and advanced - includes metal gear train, ball bearing, and metal case to dissipate heat for prolonged use in the cockpit

Digital signal - offers smooth and precise movement with strong centering

Custom-designed - only available through Motionsic, in collaboration with Savöx Taiwan

Compare with Savox SH-0257MG digital metal gear, metal case, ball bearing servo, $35/pc

Specifications:

  • Torque @4.8v - 1.8kg/25.0oz-in
  • Torque @6v - 2.2kg/30.6oz-in
  • Speed @4.8v - 0.13 sec/60 deg
  • Speed @6v - 0.09 sec/60 deg
  • Dimensions L x W x H (mm):22.8 x 12.0 x 25.4
  • Weight: 14.0g



Technical Details

  • Operating Temperature: 14° - 122°F (-10° - 50°C)
  • Running Current (no load): 150mA @4.8V, 180mA @6.0V
  • Stall Current (at locked): 1000mA @4.8V, 1200mA @6.0V
  • Idle Current: 5mA @4.8V, 5mA @6.0V
  • Wire Length: 250 ± 5mm
  • Output Gear Spline: 21 Tooth
  • Bearings: 1BB
  • Operating Travel: 270° (1000 → 2000 µ second)
  • Neutral Position: 1500 µ second
  • Pulse Width Range: 951 → 2049 µ second
  • Maximum Travel: Appx 300° (951 → 2049 µ second)
  • Exceeding Above Pulse Width Range would cause servo to spin continuously!
  • Refresh Rate: 240 Hz
  • Motor Type: Brushed



*Servo horn NOT included.  Compatible with servo horns (21T spline) from Freewing 9 gram servo.

* * Not compatible for high voltage (>6V) use
